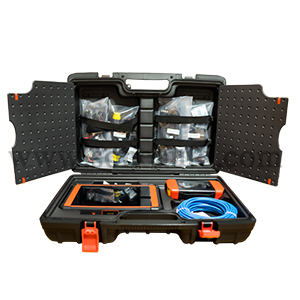

X-431 PAD 5 V2.0 Diagnostic Scanner

X-431 PAD V is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 7.1. It supports dual 2.4GHz & 5GHz Wi-Fi communications, with features such as wide vehicle model coverage, powerful diagnostic functions, and accurate test data. Its IP65 case has exceptional damages resistance for water and dust, which will make workshop work easier and more comfortable. All these unique features will offer you a luxury experience of vehicle diagnosis.


1. Full vehicle system coverage for over 110 brands in the world, which is continually updated. 2. Full-function scan tool for both cars and trucks. 3. Support J2534, DolP, CAN FD and other protocols with SmartBox 3.0 connector. 4. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis. 5. Remote diagnosis allowing you to work on a vehicle from your tool without being on-site. 6. Read all OTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions. 7. Guided function for Volkswagen and Audi. 8. Advanced coding and programming function. 9. 16 special functions available. 10. ADAS calibration function is optional. 11. Compatible with 5 extended module: Oscilloscope, sensor, battery test, endoscope, WiFi printer. 12. One-Click Upgrade and silent install for software. 13. Diagnostic records and reports can be stored in the cloud without any concern of data missing. 14. Integrated database with comprehensive vehicle service and repair information. 15. The latest 2.4 & 5GHz Dual Wi-Fi with high transfer speed, strong anti-interference and long-distant diagnosis ability. 16. IP65 case with exceptional damage resistance to the water and dust for workshop use. 17. Docking & charging station included with QC3.0 Quick Charge technology. 18. Support USB Type C & Type A.
Special Functions:
services lamp reset, electronic throttle rlrn, brake reset, immobilizer reset, battery reset, injector coding, SAS reset, TPMS reset, ABS bleeding, Gear Learing, DPF regeneration, Gearbox reset, headlamp reset, sunroof initialization, SUS reset, EGR adaption , A/F reset, AdBlue reset, NOX sensor reset, stop/start settings, transport mode, coolant bleed, windows calibrations , seat calibrations, Tyre reset, language change.
• Processor : 8-core processor. • Memory : 4GB
• Storage : 64 GB internal + 128 GB expandable memory • Resolution : 1920×1200
• Operation System : Android 7.1 • Wi Fi : Dual Band 2.4 & 5 Ghz
• Camera : Rear 13 Megapixels, front 8 Megapixels • Writing Temperature : 0 – 50°c
• Diagnostic Communication : Wi-Fi and wired • Dimension : 320X211 X 46mm
• Screen : 10.1 inch touch screen display with Gorilla Glass for sunlight condition

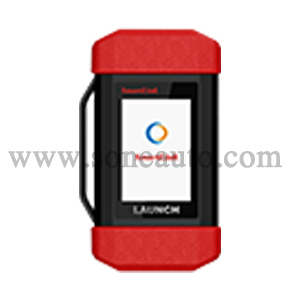

SmartLink C Parameters:
• Display : 3.97-inch TFT screen, 320*480 resolution
• Operating Voltage : DC 9V ~ 36V
• Power Consumption : < 6W
• Memory : 256M
• Storage : 8GB
• Communication Mode : Bluetooth (Local Diagnostic), Ethernet (Remote Diagnostic)
• Dimension : 204 * 110 * 45 mm
