• JVH-M100 Manual Headlight Tester is for testing the luminous intensity, light height and optic deviation of the headlight of automotive and motorcycle. It is equipped with Chinese or English LCD display, standard RS-232C interface, analog data output interface and battery-operated in low power consumption mode. Assembly and disassembly are fast, it is very easy to move.

• With the advantages of easy operation and accurate measurement, it is suitable for use in vehicle inspection stations and mobile inspection lines for headlight inspection. It is also suitable for use in vehicle repairing and maintenance shops for adjusting and testing the illumination position of the headlight beams.

• Provide auxiliary angular calibration to headlight testers. (The instrument automatically indicates the adjustment direction of the headlight tester).

• Designed  according to EUSAMA.

• Start from 23Hz, Suspension Tester can simulate the real road highest vibration.

• Low-noise design reduces the vibration interference.

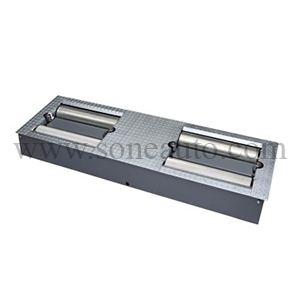

• It can be used in garages and vehicle inspection stations, to compose as a vehicle safety test lane with  Car Brake Tester, Car Sideslip Testerand Speedometer.

• Optional Variable frequency.

• Max axle load : 3 T
• Test speed : 2.5 km/h
• Brake force range : 0-9000 N
• Motor : 3 kw ×2
• Power supply : 380V 50HZ
• Adhesion coefficient : 0.8
• Roller diameter : 245 mm
• Roller length : 750 mm
• Dimensions(L×W×H) : 2500×750×360 mm
• Application : 2 WD

• With new technology of CMOS machine vision camera and high-speed DSP(Digital Signal Processor), all parameters of high-beam and low-beam are tested accurately and automatically.
• With strong software function and LCD display, inspection, calibration and adjustment can be completed quickly.
• Light Image Alignment technology, external interference can be eliminated, accurate and fast follow-light aiming is ensured, high-beam / low-beam inspection takes only 40 seconds.
• Only 25 seconds needed for testing 2 headlights synchronously, suitable for busy inspection stations.
• Adopting frequency conversion driving, horizontal movement is steady and reliable.
